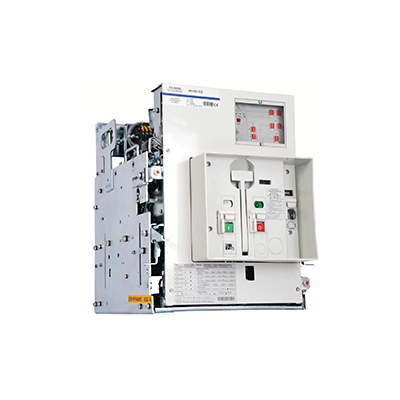

C&S Electric offers an incredibly innovative high quality Air Circuit Breakers range, designed to satisfy all application requirements. The ACBs incorporate the latest technology to enhance both performance and safety, easy to install, user-friendly, intuitive operation and environmental friendly design. C&S Electric ACB range offers a great advantage – with the increased performances, you can use the smaller circuit-breaker frames, obtaining considerable savings both in economic terms and in physical space within the switchgear.

Features :

• Conforms to Standards IEC 60947-2

• Ranges : 630A to 6300A

• Frame Sizes : 4 nos.

• Executions : 3P & 4P

• Breaking Capacity : 50kA, 65kA, 80kA & 100kA

• Versions : Fixed & Drawout (Manual & Motor Charging)

• Terminal Type : Horizontal upto 2500A & Vertical from 3200A to 6300A

• Supplied with Closing Coil, Shunt Trip Unit, UVR, 6NO+6NC Aux. Contacts etc.

• Adjustable O/L from 40% to 100% of In

• Tripping Mechanism : Thermal-Magnetic, Electronic & Micro-processor based

• Available with EFR (built-in CBCT) with NCT, Aux. Contacts etc
